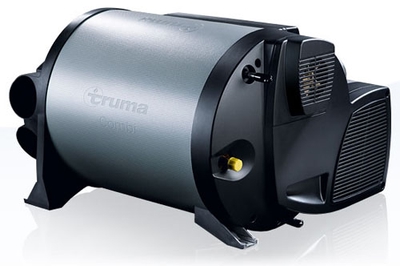

Truma Combi 6E Boiler

The Truma Combi 6E heater has a 6000 W rated thermal output. The Truma Combi 6E water heater is the most lightweight and compact

caravan, campervan, motorhome combination heater available. It has unrivalled low power consumption. The Truma Combi 6E has the additional benefit of a 230V 1800W electric element as well, which can be used on it’s own or simultaneously with gas.

Optimum distribution of warm air through four warm air outlets. The truma Combi 4 boasts short water heating times, but no need to cut your shower short. It has a durable stainless steel water tank.

The Truma Combi 6E  can be used to just blow warm air, just heat water or both at the same time!

Each kit contains:

1 x Combi Boiler

1 x Flue Pipe

1 x Flue

1 x Push fit inlet (blue)

1 x Push fit outlet (red)

1 x Nut and Olive

1 x Drain valve

1 x Thermostat

1 x CP Plus Control Panel

1 x Boiler to Control panel lead

1 x Cover Plate (plastic for boiler)

2 x Small Clips

2 x Large Jubilee Clips

1 x Instruction Manual

Other accessories are optional extra’s and available at additional cost, i.e. Electronic Damp valve, etc

Additional benefits of the Combi 4

• Four warm air connections ensure optimum air distribution via a quiet yet powerful fan
• The temperature can be infinitely adjusted on the ergonomic control panel
• During winter operation, the vehicle is heated and the water is warmed up at the same time; during summer
• operation, only the water is warmed up
• The asymmetrical shape of the 10-litre stainless steel boiler enables the water to be mixed more efficiently – so it
• warms up more evenly and rapidly – which means you can enjoy longer showers without the need to readjust any
• settings
• The heater can be operated even if the boiler hasn’t’ been filled
• The compact design enables a high degree of flexibility when selecting the installation area
• Water, gas and warm air duct connections at the side make servicing easier
• The innovative microprocessor control system ensures even more safety

Energy Source	Liquid gas (propane/butane)
Operating Pressure	30 mbar
Water Capacity	10 litres
Water Pressure	Max. 2.8 bar
Heating time (from 15°C to 60°C): Boiler/Heater and boiler	Approx. 20 min./Approx. 80 min.
Rated Thermal Output	2000/4000 W
Fuel Consumption	160–320 g/h
Air Flow Rate	Max. 287 m3/h
Power consumption (at 12 V): Heating and boiler operation	0.2 A up to temporary max. of 5.6 A (average approx. 1.1 A)
Power consumption (at 12 V): Heating up boiler	Max. 0,4 A
Rest Current	Approx. 0.001 A
Weight (without water)	14,0 kg
Dimensions (L x W x H)	510 x 450 x 300 mm
